How to Choose Between Double-Twisted and Welded Gabions: A Comprehensive Guide

How to Choose Between Double-Twisted and Welded Gabions: A Comprehensive Guide

Gabions are versatile, cost-effective, and environmentally friendly solutions widely used in civil engineering, landscaping, and erosion control projects. When selecting gabions, the primary decision often boils down to two main types: double-twisted gabions and welded mesh gabions.

While they may look similar to the untrained eye, their structural characteristics, performance, and ideal applications differ significantly. Choosing the wrong type can lead to reduced longevity, structural failure, or unnecessary costs. This guide provides a systematic approach to selecting the right gabion for your project.

1. Understanding the Fundamental Difference

The core difference lies in the manufacturing of the mesh:

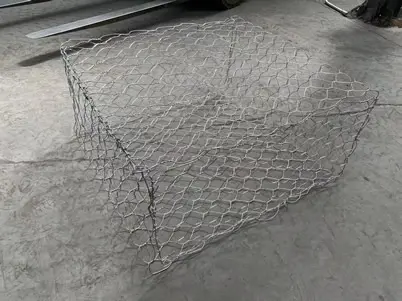

• Double-Twisted Gabions: Made from steel wire that is twisted together in pairs to form a hexagonal mesh. This twisting action creates a flexible, "honeycomb" structure. The mesh panels are typically connected to each other and the base using a continuous lacing wire.

• Welded Mesh Gabions: Made by welding individual steel wires at their intersections to form a square or rectangular grid. This creates a rigid and robust panel. The panels are then connected using spiral binders or clips.

2. Key Selection Criteria

To make an informed choice, evaluate your project against the following criteria:

A. Project Application and Primary Function

This is the most critical factor.

Choose Double-Twisted Gabions for:

• Erosion Control and Revetments: The flexible nature of the double-twisted mesh allows it to conform to ground settlement without losing integrity. If the soil beneath it settles, the gabion basket flexes and adjusts, maintaining contact and protection.

• Channel Linings: The flexibility handles minor subgrade movements common in watercourses.

• Slope Stabilization: Its ability to absorb and distribute forces makes it ideal for stabilizing slopes prone to creep or minor shifts.

• Foundations and Retaining Walls: For large, gravity-based structures where flexibility and the ability to withstand differential settlement are advantages.

Choose Welded Mesh Gabions for:

• Architectural and Landscaping Features: When a clean, sharp, geometric appearance is required (e.g., planters, benches, freestanding walls, noise barriers). The rigid panels provide a neater finish.

• Projects Requiring High Vertical Strength: The welded joints provide superior resistance to buckling under load, making them suitable for taller, more vertical walls where internal stone pressure is high.

• Precise, Box-Like Structures: Where the design demands a strict, unyielding form.

B. Flexibility vs. Rigidity

• Double-Twisted: High flexibility. If your project site is prone to settlement, vibration, or ground movement (e.g., near railways, on soft soil), the double-twisted design is inherently more tolerant. It can deform without catastrophic failure.

• Welded Mesh: High rigidity. It is strong but brittle under point loads or differential movement. If the ground settles unevenly, the welds can crack, compromising the entire structure.

C. Durability and Corrosion Protection

Both types use galvanized steel wire (often with a PVC coating for harsh environments). However, the manufacturing process affects durability.

• Double-Twisted: The twisting process does not damage the zinc coating, as the wire is bent, not melted. The hexagonal mesh is less prone to "unraveling" if a single wire is cut or damaged.

• Welded Mesh: The welding process can create tiny points of vulnerability at the welds, where the extreme heat may have slightly compromised the corrosion coating. High-quality manufacturers will re-galvanize after welding, but this is a key point to check.

D. Ease of Assembly and Filling

• Double-Twisted: Often supplied folded flat and require assembly on-site by lacing the panels together. This can be more labor-intensive. However, their flexibility makes them easier to handle and position.

• Welded Mesh: Typically supplied as pre-assembled, rigid panels that are connected with spiral binders. This can lead to faster assembly. The rigid structure also makes them easier to fill with stone, as the walls do not bulge outward as easily.

E. Cost Considerations

• Double-Twisted Gabions: Generally have a lower material cost and are the standard choice for large-scale civil engineering projects.

• Welded Mesh Gabions: Often have a higher material cost due to the welding process. However, the potential for lower installation labor costs (due to faster assembly) can sometimes make the overall project cost competitive. The choice may come down to a balance between material and labor budgets.

3. Decision-Making Summary Table

Feature	Double-Twisted Gabions	Welded Mesh Gabions
Mesh Type	Flexible hexagonal mesh	Rigid square/rectangular grid
Ideal For	Erosion control, revetments, slopes, foundations	Architectural walls, planters, tall vertical structures
Settlement Tolerance	Excellent - flexes with ground movement	Poor - rigid, welds may crack
Aesthetic Finish	Rugged, natural look	Clean, sharp, geometric lines
Durability	High - does not unravel easily	High - but check for post-weld galvanizing
Ease of Assembly	More labor-intensive (lacing wire)	Faster (spiral binders/clips)
Relative Cost	Generally lower material cost	Generally higher material cost

Conclusion

There is no universally "better" option; the right choice depends entirely on your project's specific requirements.

• For dynamic environments where ground movement, erosion, and flexibility are the primary concerns—such as riverbanks and coastal protection—double-twisted gabions are the proven and reliable choice.

• For static, architectural applications where aesthetics, vertical strength, and a precise form are paramount—such as garden features or urban noise barriers—welded mesh gabions offer superior performance and appearance.
